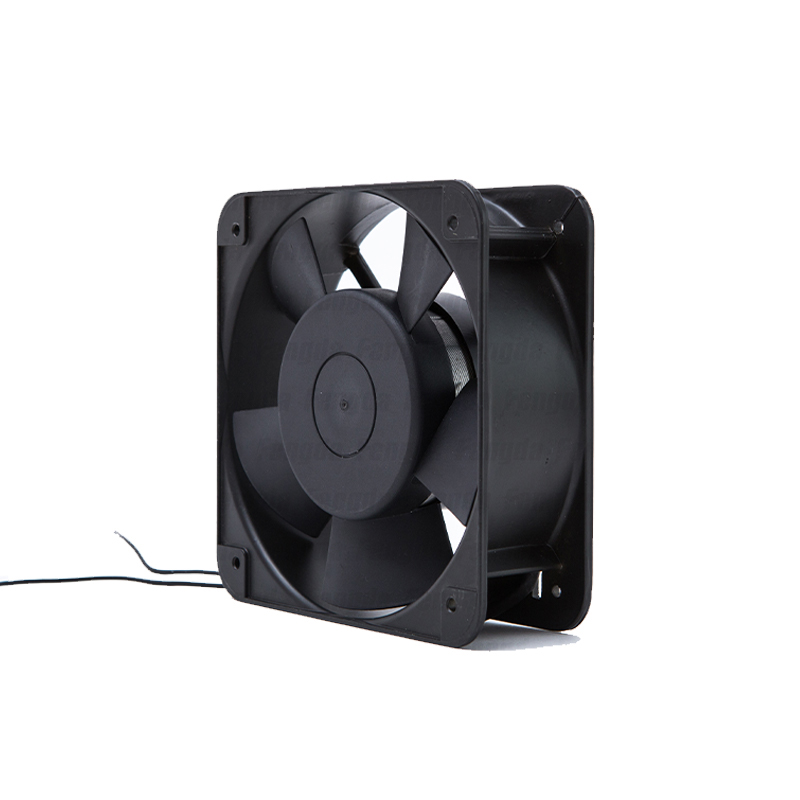

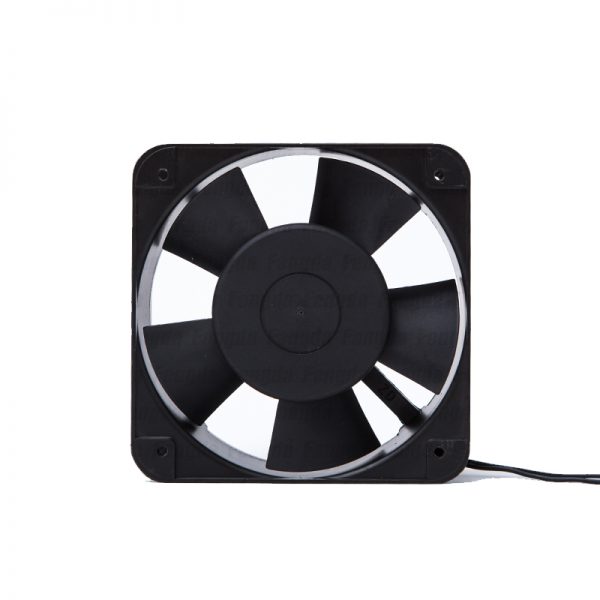

FD1550A-Q


Product Features:
  • Housing: Die-Cast Aluminum, Painted
  • Blade: Plastic P.B.T.
  • MEAS (Measurement): 36cm×33cm×37cm
  • Gross Weight: 25 kilograms
  • Net Weight: 23 kilograms
  • Packing: 24 pieces per carton
  • Terminal connector version, Change ” L ” in the Model to ” T “
  • S: Sleeve bearing B: Ball bearing
  • Weight: 950gram

Product and Usage Description:
  • Insulation Resistance: 10MΩ at 500VDC between lead and frame
  • Dielectric Strength: 1 minute at 1500VAC/50-60Hz, current < 5mA
  • Operating Temperature: -10°C to 60°C
  • Operating Humidity: 20% to 85%
  • Working Voltage: 85V to 125V for 110V and 190V to 250V for 220V
  • Life at 25°C: Ball bearing 60,000 hours, Sleeve bearing 30,000 hours
  • General value here only for reference,real specification will be met the samples, and we accept customized services.
