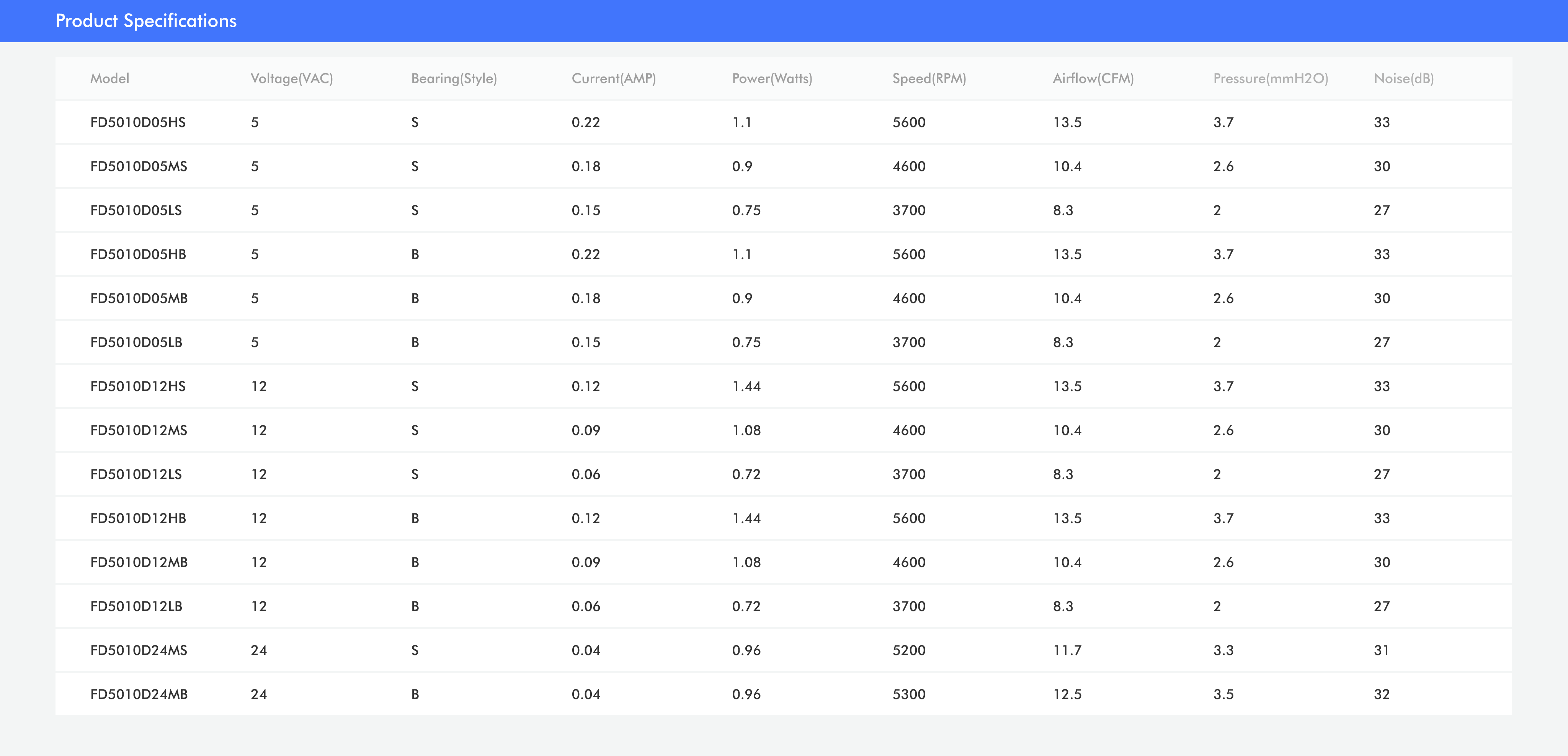

FD5010D

• S: Sleeve bearing B: Ball bearing
• Weight: 20 .0 gram

Product and Usage Description:

• Insulation Resistance: 10MΩ at 500VDC between lead and frame
• Dielectric Strength: 1 minute at 500VAC/50-60Hz, current < 5mA
• Operating Temperature: -10°C to 60°C
• Operating Humidity: 20% to 85%
• Working Voltage: Rated voltage ±15%
• Life at 25°C: Ball bearing 60,000 hours, Sleeve bearing 30,000 hours, Ball + Sleeve Bearing 45,000 hours
• General value here only for reference,real specification will be met the samples, and we accept customized services.
