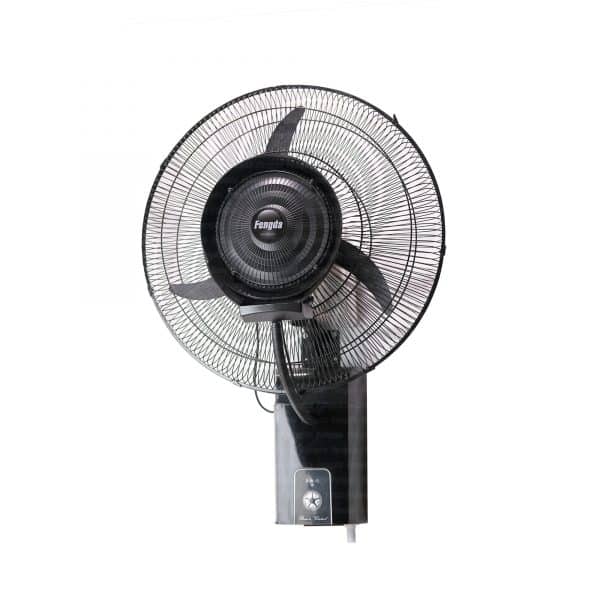

FDW10C P/N 26WL

Mist System:

• Mode: Centrifugal mode (FDW108 P/N20C), adjustable by water valve
• Water Tank: 8L ABS plastic tank (continuous operation with tap water supply)
• Misting Time: Continuous operation (with tap water supply)
• Available Area: 30 sqm area and 8m available distance
• Drop Size: < 20μm
• Mist Effect: Reduces temperatures by 4-8 degrees Celsius

Fan:

• Size: 26” (650mm) for wall mounting, mounting height: 2.0m to 2.5m
• Adjustable: 3 speeds, 90 degrees oscillation automatically
• Airflow: 5000-7500 cbm/hour, 53-69 dB
• Material: Metal grill stand pole
• Fan Blade: PC plastic blade as default, aluminium blade available on request
• Motor Tilt: 30 degrees adjustable up and down

Electrical Specifications:

• Voltage & Power: 220-240VAC, 50/60Hz, 165-230W

Control:

• Remote Control (3 fan speeds, mist system, and fan oscillation)

Packaging:

• 2 cartons per set, 0.0988 cbm
• Net Weight: 15.50 kg
• Gross Weight: 17.50 kg

Container Capacity:

• 280 sets per 20GP
• 580 sets per 40GP
• 680 sets per 40HQ
